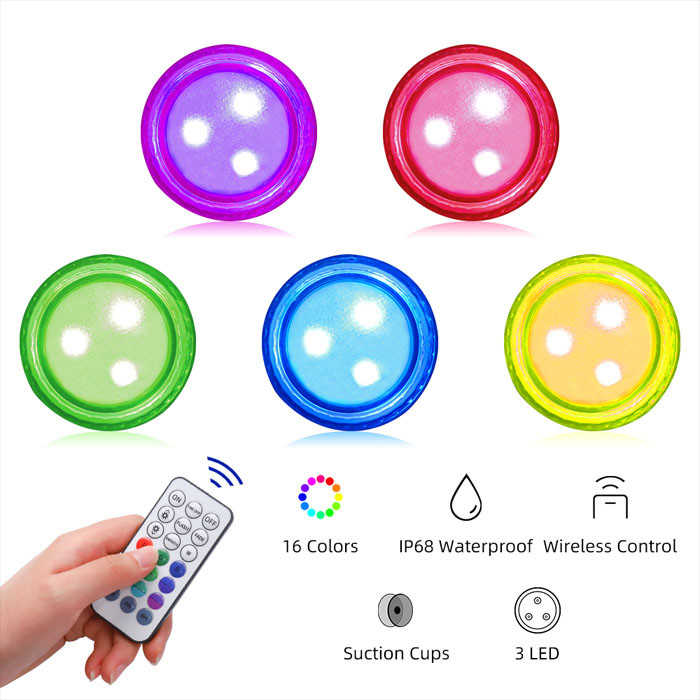

Small Submersible LED Lights Mini Waterproof RGB LED Tea Lights
Candles Party Events Home Vase Pool Pond Decor
Introduce:
ZYX is a professional PCB / PCBA manufacturer in Shenzhen China.Our
provide high quality bare PCB and PCB assembly service,including
components sourcing, function test,conformal coating and complete
assembly for clients all over the world.
ZYX provides superior service for automotive electronics, medical
electronics, telecommunications, industrial control, smart home and
other industries around the world.
Working Time (hours): | 50000 | Place of Origin: | Shenzhen, China |
Product Weight(kg): | 0.027 | Brand Name: | BQZYX+ |
Input Voltage(V): | 6V | Lighting solutions service: | Lighting and circuitry design |
Item: | Small Submersible LED Lights | Color Temperature(CCT): | 2700K (Soft Warm White) |
Light Source: | LED, 3 SMD5050 | Item Type: | Pool Lights |
Support Dimmer: | YES | Light Size: | DIA.3.5CM, H.2CM |
ZYX is a professional OEM manufacturer for PCB design, PCB
production, component souring and SMT assembly, we sincerely would
like to be your reliable OEM supplier from China.
With more than 11 years experience in the PCB industry, our
services
includes:
- PCB/PCBA Contract Manufacturing
- Reverse Engineering Services
- PCB Design and Assembly
- Component Procurement / Material Management
- Product Design
- Fast PCB/PCBA Prototyping
- Cable and Wire Assemblies
- Plastics and Molds
- AOI,X-Ray Testing, other Function Testing Service
(1) Raw material control. Components from original factory for
critical components, such as relay, microchip, Optocoupler,ect.
(2) SMT & AI automatic assembly in workshop
(3) ICT test & FCT test in assembly line
(4) PCB Assembly 100% checked by the end of production line
(5) Lead free workshop, and PCBA comply with RoHS & REACH standard
(6) Voltage dip test, surge test, high & low temperature test,and
life test before shipment
(7) After sale service
Article | Description | Capability |
Service | one-stop turnkey service for PCB and assembly,box building |
Material | laminate material | FR2,FR4,high TG FR4,high frequency, Aluminium,FPC |
Board cutting | Number of layers | 1-20 layers |
Min.layer for inner layers(cu thickness is excluded) | 0.003"(0.07mm) |
Board thickness | standard | (0.1-4mm±10%) |
Min. | Single/Double:0.008±0.004" |
4 layer: 0.01±0.008" |
8 Layer:0.01±0.008" |
Bow and twist | no more than 7/1000 |
Copper weight | Outer copper weight | 0.5-4 OZ |
Inner copper weight | 0.5-3 OZ |
Drilling | Min. size | 0.0078"(0.2mm) |
drill deviation | ±0.002(0.05mm) |
PTH hole tolerance | ±0.002(0.05mm) |
NPTH hole tolerance | ±0.002(0.05mm) |
Soldermask | color | green,white,red,blue,black,white… |
Min. soldermask clearance | 0.003"(0.07mm) |
thickness | (0.012*0.017mm) |
Silkscreen | color | white,black,yellow,blue |
Min.size | 0.006"(0.15mm) |
E-test | functional test | 100% and functional test |
PCBA testing | AOI test,functional test, visual test |
PCB assembly | one-stop electronic manufacturing service |
Component sourcing | Yes |
Certificate | ISO9001 |
Delivery time | PCB | 3-8 days |
PCBA | 10-20days |
PCB tolerance | ±5% |
Max size of finish board | 700*460mm |
MOQ | NO MOQ(1pcs) |
Surface finish | HASL,OSP,ENIG,flash gold |
PCB outline | square,circle,irregular |
Package | QFN,BGA,FBGA,SOP,PLCC,LGA |
Sub-assembly | plastic,metal,screen |
Q. What service can you supply ?
ZYX are OEM PCB and PCBA manufacturer since 2010 ,we can provide
turnkey solutionincluding RD PCB fabrication,SMT and assembly PCBA
inside the enclosure,Functiontesting and other value-added service.
Q. What file you need to prepare if you want to get an quotation
from us?
For PCB board, you need to prepare files of Gerber file,it should
including RS-274X,ODB++, DXF, PCB, PCBDOC etc formats.
For PCBA(PCB with soldered components), except the file for PCB,
you also need to prepare the BOM list (components list), Pick and
Place file(txt format), real sample pictureor 3D PDF version file
etc.
Q. Do you have any MOQ Limited ?
We havent any limited about MOQ .Sample and mass production all can
support.
Q. How to keep our product information and design file secret ?
We are willing to sign a NDA effect by customers side local law and
promising tokeep customers data in high confidential level.
Q. How long does it take for PCB and PCBA Quote ?
PCBs quotation within 2 hours can finished the PCBA depend on the
components
quantity,if simple, within 6 hours can finished,once complex and
more,the 12- 36 hours
can be finished.
*Please note that the following detail will speed up evaluation:
Material:
Board thickness:
Copper thickness:
Surface finish:
Solder mask color:
Silkscreen color:
Q. How about the delivery?
Normally, for sample order, our delivery is about 5 days.For small
batch, our delivery is about 7 days.
For mass production batch, our delivery is about 10 days.
But that depends on the real condition when we get your order.
If your order is urgently please contact us directly ,we will
priority to deal it and do ourbest to give you satisfied delivery
time.
Q. How can we guarantee you receive an good quality product?
For PCB, we will use Flying Probe Test, E-test etc. for it.
For PCBA, we need you to offer us a method or test fixture for the
function test.Before that, our inspectors will use microscope and
X-ray to check the IC footwelding or bad solder etc.
