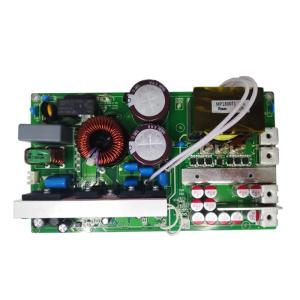

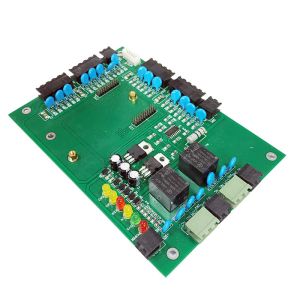

OEM Electronic Pcba Inverter Power Supply Pcb Board 32 Layers
Introduce:
ZYX is a high-quality provider of electronics manufacturing
services (EMS) locate in in Shenzhen,China. We serve customers
worldwide along the whole industry chain including product design,
material sourcing, PCBA production, cable assembly, box build
assembly and comprehensive testing services. Our 4,000 sqm
facilities include 6 surface-mount technology (SMT) production
lines, 2 through hole technology (THT) lines , 2 function testing
lines and 2 box build production lines
Model Number: | ZYX-21731WCGIU | Place of Origin: | Shenzhen, China |
Supplier Type: | PCBA | Brand Name: | BQZYX+ |
Base Material: | FR-4 | Min. Line Spacing: | 4mil |
Min. Hole Size: | 0.2mm | Surface Finishing: | HASL |
Min. Line Width: | 4mil | Certificate: | ISO9001 |
Specifications
1. We offer One-shop PCAB/PCB manufacturing service
2.11 year of turnkey ODM/OEM experience
3. We can provide F4B,F4BK, Teconic,Arlon,Rogers materia PCB
4. Timely customizations PCBs and PCBAs
2. Detailed Terms for Pcb Assembly
Technical requirement:
(1) Professional Surface-mounting and Through-hole soldering
Technolog
(2) Various sizes like 1206,0805,0603 components SMT technology
(3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
(4) PCB Assembly With UL,CE,FCC,Rohs Approval
(5) Nitrogen gas reflow soldering technology for SMT.
(6) High Standard SMT&Solder Assembly Line
(7)High density interconnected board placement technology capacity
Research and development sales of network communication products. R
& D and sales of consumer electronics products ems department
customers provide full service led products R & D, smt and testing
PCB Item | Production Capacity |
Layer Counts | 1--20L |
Base Material | FR4,High-TG FR4,CEM3,aluminum,High
Frequency(Rogers,Taconic,Aron,PTFE,F4B) |
Material Thickness(mm) | 0.40, 0.60, 0.80, 1.00, 1.20, 1.50, 1.60, 2.0, 2.4, 3.2 |
Max board size(mm) | 1200x400mm |
Board Outline Tolerance | ±0.15mm |
Board Thickness | 0.4mm--3.2mm |
Thickness Tolerance | ±8% |
Minimum line/space | 0.1mm |
SMD Pitch | 0.3mm |
Min Hole Size(mechanical) | 0.2mm |
Min Hole Size(laser hole) | 0.1mm |
Hole Size Tol (+/-) | PTH:±0.075mm;NPTH: ±0.05mm |
Surface Finish | HAL,ENIG,Plated Gold,Immersion Gold,OSP |
Copper Weight | 0.5--6oz |
Solder mask | Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black,
Matt Blue |
Acceptable File Format | Gerber file,Powerpcb,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000 |
Certificate | ROSH,ISO9001,UL |
