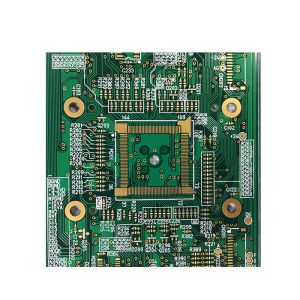

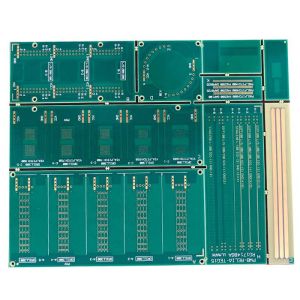

High TG Multilayer Circuit Board HASL Lead Free UL Certificated
About us:
Was founded in year of 2010 .With being OEM manufacturer
specializing in PCB/PCBA Sensors etc with 11-year,nowadays,we have
built up our strong product research and development center and we
are devoting ourselves to electronics smart
product. combined with the wealth of experience and expertise we
have built up over the years, means we can offer a total solution
to our customers one stop Service
requirements – from front end engineering through to in time
deliveries.
Our PCBA Capability
SMT, PTH, mixed technology
SMT: 2,000,000 solder joints per day
DIP: 300,000 joints per day
Ultra fine pitch, QFP, BGA, μBGA, CBGA
Advanced SMT assembly
Automated insertion of PTH (axial, radial, dip)
Cleanable, aqueous and lead-free processing
RF manufacturing expertise
Peripheral process capabilities
Pressfit back planes & mid planes
Device programming
Automated conformal coating
For E-Test
Universal Tester
Flying Probe Open/Short Tester
High power Microscope
Solder ability Testing Kit
Peel Strength tester
High Volt Open & Short tester
Cross Section Molding Kit With Polisher
Model Number: | ZYX-2181DDFGL | Place of Origin: | Shenzhen, China |
Copper Thickness: | 1oz copper | Brand Name: | BQZYX+ |
Board Thickness: | 4 Layer /1.45mm | Product name: | 4 layer high-tg PCB |
Min. Hole Size: | 0.3mm | Fast produce time: | 48h ~72h |
Min. Line Spacing: | 3mil | Base Material: | FR4 High TG /ROSH |
1. PCB manufacturing
Needed: Gerber file(main), .Pcb.Doc and KiCAD-PCB, etc.
2. Components sourcing
Needed: BOM list included detailed Part number and Designator.
3. PCB assembly
Needed:PCB file and BOM list.
Our sales & engineer teams will reply you completely PCBA Quotation
within 12 hours.
PCB Making
Layers: 1-58 layers
(Main advantages from 2 layers, 4layers 6 layers, 8 layers hdi to
20layers.)
Max.Thickness:
HASL lead free is 0.6-4.0mm; ENIG is 0.2-7.0mm; Siliver: 0.4-5.0mm;
Material: FR-4 TG170 TG180 in mass production
(Shengyi S1141,S1165,S1600, IT180A,etc.)
Min.Width/Spacing: 0.1mm in hdi, and 0.15-0.2mm for standard
making.
Max.Copper Thickness: 0.5oz-12oz heavy copper
Min. Hole Size: Laser drill is 0.1mm-0.15mm | ±0.05mm (4-6mil±2mil)
Max. Panel Size: 1150mmx560mm
Aspect Ratio: 12:1 and 8:1 in mass production
Surface Finish: HASL lead free,Immersion Gold, Immersion Silver
mainly.
Special Process:
Buried Hole, Blind Hole, Embedded Resistance, Embedded Capacity,
Hybrid, Partial hybrid, Partial high density, Back drilling and
Impedance control.
Copper pcb Product Name | Metal pcb Circuit board |
pcb board Layers | Mass production:2-58 layers/Pilot run:64 layers |
pcb Max.Thickness | Mass production:394mil(10mm)/Pilot run:17.5mm |
pcb Material | FR-4(Standard FR4,Mid-Tg,FR4,Hi-Tg,FR4,Lead free assembly
material), |
Halogan-Free,Ceramic filed,,Polyimide,BT,PPO,PPE,Hybrid,Partial
hybrid,etc. |
pcb Min.idth/Spacing | Inner layer:3mil/3mil(HOZ),Outer layer:4mil/4mil(1OZ) |
pcb Max Copper Thickness | UL certificated:6.0OZ/Pilot run:12OZ |
pcb board Min.Hole Size | Mechanical drill:8mil(0.2mm) Laser drill:3mil(0.075mm) |
pcb board Max.Panel Size | 1150mmX560mm |
pcb Aspect Ratio | 18:01 |
pcb circuit boards Surface Finishing | HASL, HASL Leadfree, Immersion Gold,Immersion Tin,
OSP,ENIG+OSP,Immersion Silver,ENEPIG,Gold Finger |
Special Process of Electronic PCB | Buried Hole,Blind Hole,Embedded Resistance,Embedded
Capacity,Hybrid,Partial hybrid,Partial high density,Back
drilling,and Resistance control. |
Quality Grade of Custom Printed Circuit Board | Standard IPC 2 |
Pcb Board Size | Min 6mm*6mm, Max 400mm*500mm |
PCB Board Thickness | 0.6mm - 2.0mm |
Copper Thickness | 0.5oz - 2.0oz |
Solder Mask Sides | As per the file |
Solder Mask Color of Pcb Circuit Board | Green, White, Blue, Black, Red, Yellow |
Solder Stop Coating | PI and PET Film |
Silkscreen Sides of pcb | As per the file |
Silkscreen Color | White, Black, Yellow |
Min Annular Ring | 4mil |
Min Hole Diameter | 8mil |
Tolerance Dimension | ±0.05mm |
Other Tech Electronic PCB | Peelable Solder Mask, Stiffener |
FAQ
Q. What service can you supply ?
ZYX are OEM PCB and PCBA manufacturer since 2010 ,we can provide
turnkey solutionincluding RD PCB fabrication,SMT and assembly PCBA
inside the enclosure,Functiontesting and other value-added service.
Q. What file you need to prepare if you want to get an quotation
from us?
For PCB board, you need to prepare files of Gerber file,it should
including RS-274X,ODB++, DXF, PCB, PCBDOC etc formats.
For PCBA(PCB with soldered components), except the file for PCB,
you also need to prepare the BOM list (components list), Pick and
Place file(txt format), real sample pictureor 3D PDF version file
etc.
Q. Do you have any MOQ Limited ?
We havent any limited about MOQ .Sample and mass production all can
support.
Q. How to keep our product information and design file secret ?
We are willing to sign a NDA effect by customers side local law and
promising tokeep customers data in high confidential level.
Q. How long does it take for PCB and PCBA Quote ?
PCBs quotation within 2 hours can finished the PCBA depend on the
components
quantity,if simple, within 6 hours can finished,once complex and
more,the 12- 36 hours
can be finished.
*Please note that the following detail will speed up evaluation:
Material:
Board thickness:
Copper thickness:
Surface finish:
Solder mask color:
Silkscreen color:
Q. How about the delivery?
Normally, for sample order, our delivery is about 5 days.For small
batch, our delivery is about 7 days.
For mass production batch, our delivery is about 10 days.
But that depends on the real condition when we get your order.
If your order is urgently please contact us directly ,we will
priority to deal it and do ourbest to give you satisfied delivery
time.
Q. How can we guarantee you receive an good quality product?
For PCB, we will use Flying Probe Test, E-test etc. for it.
For PCBA, we need you to offer us a method or test fixture for the
function test.Before that, our inspectors will use microscope and
X-ray to check the IC footwelding or bad solder etc.
Q. With payment terms do we acc
