OEM Multilayer Prototype Rigid Flex Printed Circuit Boards Assembly
Welcome To ZYX
A professional EMS/OEM Manufacturer, ZYX could provide one-stop pcb
assembly service,we also could offer:
- Contract Manufacturing
- Engineering Services
- PCB Design & Assembly
- Component Procurement & Material Management
- Product Design
- Fast Track Prototyping
- Cable and Wire Assemblies
- Plastics and Molds
- Function Testing Service
As the Professional PCB Assembly and PCB Manufacturer in China, we
pride ourselves on our Excellent Customer Service and Reliability!
ZYX also offers Exclusive Services to Help Our Customers with their
PCB Projects. Check out our Free
PCB Layout Software, our Free PCB File Check and Free PCB Sample.
Model Number: | ZYX-2181RVVBTG | Place of Origin: | Shenzhen, China |
Board Thickness: | 0.2-6mm | Brand Name: | BQZYX+ |
Min. Line Spacing: | 0.003'' | BGA Ball Pitch: | 1mm ~ 3mm(4mil ~ 12mil) |
Board Size: | Custom | Hi-TG FR4 Material: | Tg-130 Tg-140 Tg-160 Tg-170 |
Copper Thickness: | 0.4-2mil(10-50um) | PCB Assembly Method: | SMT, Through-hole, Mixed, BGA |
1. PCB ,FPC , Aluminum PCB ,Membrane Switch ,SMT Stencil
Manufacturing
2. PCB, FPC ,Aluminum PCB ,Membrane Switch Copy service
3. Component Sourcing (Supply all electronics)
4. PCB Assembly (Single sided ,double sided and Muli-layer SMT &
PTH& BGA) can Write program for customers
5. PCB PCBA 100% test (X-ray Inspection ,AOI Test , ICT,Probe
flying,burn-in,function test,temperature cycling)
6. Cable&Wire Assemblies&Housing Assemblies
7. Plastics and Molds
8. Better quality and Price for
Heatsink,Cable,Sensor,Modules,Enclosure mold and all Electronic
Parts Cusmized Service

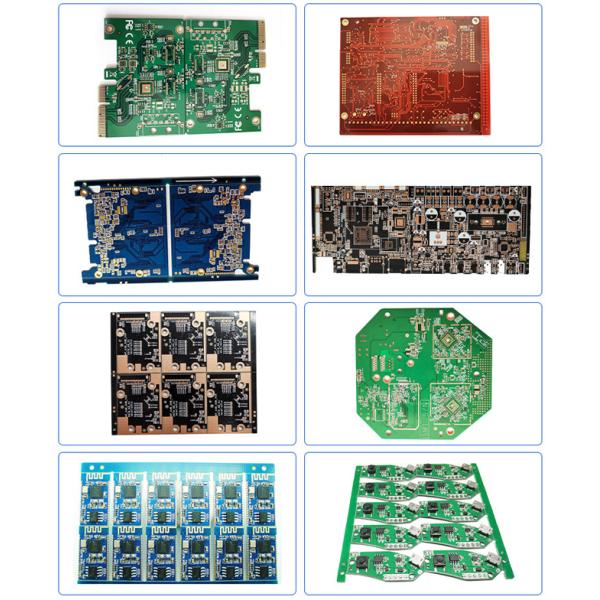

Images |
|
Min Trace Width (a) | 0.075mm (3mil) |
Min Space Width (b) | 0.1mm (4 mil) |
Min Annular Ring | 0.1mm (4 mil) |
SMD Pitch (a) | 0.2 mm(8 mil) |
BGA Pitch (b) | 0.2 mm (8 mil) |
Solder Mask |
|
Min Solder Mask Dam (a) | 0.0635 mm (2.5mil) |
Solder mask Clearance (b) | 0.1mm (4 mil) |
Min SMT Pad spacing (c) | 0.1mm (4 mil) |
Solder Mask Thickness | 0.0007"(0.018mm) |
Holes |
|
Min Hole size (CNC) | 0.2 mm (8 mil) |
Min Punch Hole Size | 0.9 mm (35 mil) |
Hole Size Tol (+/-) | PTH:±0.075mm;NPTH: ±0.05mm |
Hole Position Tol | ±0.075mm |
Plating |
|
HASL | 2.5um |
Lead free HASL | 2.5um |
Immersion Gold | Nickel 3-7um Au:1-5u'' |
OSP | 0.2-0.5um |
Outline |
|
Panel Outline Tol (+/-) | CNC: ±0.125mm, Punching: ±0.15mm |
Beveling | 30°45° |
Gold Finger angle | 15° 30° 45° 60° |
Certificate | ROHS, ISO9001:2008, SGS, certificate |
FAQ
Q. What service can you supply ?
ZYX are OEM PCB and PCBA manufacturer since 2010 ,we can provide
turnkey solutionincluding RD PCB fabrication,SMT and assembly PCBA
inside the enclosure,Functiontesting and other value-added service.
Q. What file you need to prepare if you want to get an quotation
from us?
For PCB board, you need to prepare files of Gerber file,it should
including RS-274X,ODB++, DXF, PCB, PCBDOC etc formats.
For PCBA(PCB with soldered components), except the file for PCB,
you also need to prepare the BOM list (components list), Pick and
Place file(txt format), real sample pictureor 3D PDF version file
etc.
Q. Do you have any MOQ Limited ?
We havent any limited about MOQ .Sample and mass production all can
support.
Q. How long does it take for PCB and PCBA Quote ?
PCBs quotation within 2 hours can finished the PCBA depend on the
components
quantity,if simple, within 6 hours can finished,once complex and
more,the 12- 36 hours
can be finished.
*Please note that the following detail will speed up evaluation:
Material:
Board thickness:
Copper thickness:
Surface finish:
Solder mask color:
Silkscreen color:
Q. How can we guarantee you receive an good quality product?
For PCB, we will use Flying Probe Test, E-test etc. for it.
For PCBA, we need you to offer us a method or test fixture for the
function test.Before that, our inspectors will use microscope and
X-ray to check the IC footwelding or bad solder etc.
