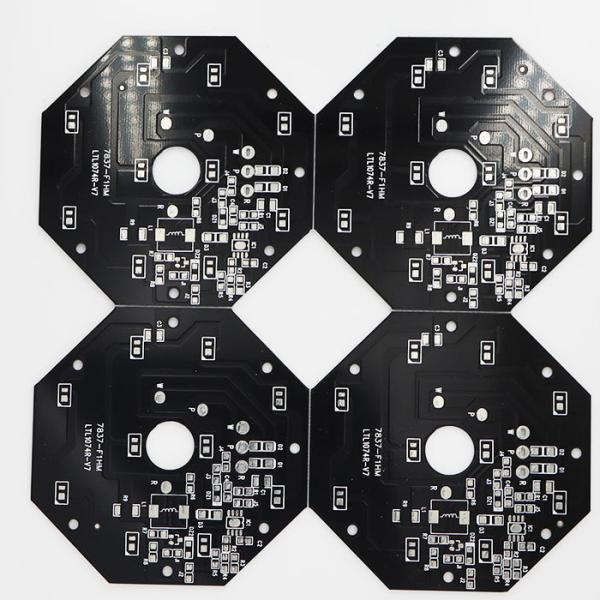

35UM Copper Single Sided PCB Board For Automotive Lighting Car
Light
About us:
Was founded in year of 2010 .With being OEM manufacturer
specializing in PCB/PCBA Sensors etc with 11-year,nowadays,we have
built up our strong product research and development center and we
are devoting ourselves to electronics smart
product. combined with the wealth of experience and expertise we
have built up over the years, means we can offer a total solution
to our customers one stop Service
requirements – from front end engineering through to in time
deliveries.
PCB Service
ZYX offers pcb production services from1~20Layer For Rigid,1~4Layer
for flexible,1~16layer Rigid-Flex pcb.The materials includes
standard FR4, High TG FR4,
Aluminum,Polyimide and your Request !
Components sourcing
ZYX offers electronics components souring service ., All IC chips ,
transistors , crystals .… are new and original . The quality of all
components can be assured after 10years experience ,High quality
and Low cost
Programming/ Function Testing
ZYX offers programming and function testing services. HEX file and
BiN file are available for IC program work by us. For The Function
testing ,please prepare detailed testing instruction and documents
or more detailed guide
Model Number: | ZYX-2181MPOTG | Place of Origin: | Shenzhen, China |
Base Material: | FR-4 | Brand Name: | BQZYX+ |
Copper Thickness: | 35UM | Surface Finishing: | HASL |
Min. Hole Diameter: | 0.5MM | Board Size: | 85*85mm |
Board Thickness: | 1.0MM | substrates material: | Aluminum base |
A One-stop EMS Contract Manufacturer
We can support your research and development efforts and meet your
fast life cycles.We have set a separated department where the
exclusive production planner will follow your orders production to
meet the requirements of Rapid
Prototyping and Quick Turn PCB.
We has been establishes quality system with ISO9001 and strictly
implements the IPC class III standard to inspect the quality.100%
inspectionincludes electric test and AOI inspection. It can carry
out high voltage test, impedance
test,microsection ,weldability test and otherprofessional tests to
keep up with more demands from users of high-tech products.* CAM
and BOM engineering * PCB and PCBA manufacture
* Materials management
* SMT and DIP assembly
* PCB and PCBA quick turn prototype
* Program and testing
* Cable assembly
* Function testing
* Final case assembly
* Package
* Logistics
Number of board layers | Single/Double layer PCB |
Material | Copper |
Function | 1. Fifth gear touch adjustment |
2. Wireless infrared remote control |
3. Led lighting lamp |
4. Over-current and over-voltage protection |
Place of Origin | Ningbo, China |
Brand Name | HF-Motion(Ningbo) |
Model Number | HFC-EDI-RH1 |
Base Material | FR4,CEM-1M,CEM-3,Polyimide,Aluminum,PTFE,Rogers |
Copper Thickness | 1-10oz |
Board Thickness | 0.2-4MM |
Min. Hole Size | 0.1mm |
Min. Line Width | 3mile |
Min. Line Spacing | 3mile |
Surface Finishing | ENIG,OSP,HAL leadfree, HASL |
Certificate | ISO9001, CE, Patent certificate |
Sample delivery | Within 24 Hours |
Shipping | DHL, FedEx,TNT |
Service | PCB&PCBA, 24Hours technical services |
Application | Air Purifier |
Solder Mask | Green,Black,Blue,Red,Matt Green |
Q. What service can you supply ?
ZYX are OEM PCB and PCBA manufacturer since 2010 ,we can provide
turnkey solutionincluding RD PCB fabrication,SMT and assembly PCBA
inside the enclosure,Functiontesting and other value-added service.
Q. What file you need to prepare if you want to get an quotation
from us?
For PCB board, you need to prepare files of Gerber file,it should
including RS-274X,ODB++, DXF, PCB, PCBDOC etc formats.
For PCBA(PCB with soldered components), except the file for PCB,
you also need to prepare the BOM list (components list), Pick and
Place file(txt format), real sample pictureor 3D PDF version file
etc.
Q. Do you have any MOQ Limited ?
We havent any limited about MOQ .Sample and mass production all can
support.
Q. How to keep our product information and design file secret ?
We are willing to sign a NDA effect by customers side local law and
promising tokeep customers data in high confidential level.
Q. How long does it take for PCB and PCBA Quote ?
PCBs quotation within 2 hours can finished the PCBA depend on the
components
quantity,if simple, within 6 hours can finished,once complex and
more,the 12- 36 hours
can be finished.
*Please note that the following detail will speed up evaluation:
Material:
Board thickness:
Copper thickness:
Surface finish:
Solder mask color:
Silkscreen color:
Q. How can we guarantee you receive an good quality product?
For PCB, we will use Flying Probe Test, E-test etc. for it.
For PCBA, we need you to offer us a method or test fixture for the
function test.Before that, our inspectors will use microscope and
X-ray to check the IC footwelding or bad solder etc.
